Multipoint door locks for entrance and French doors
Security and comfort for door systems
Title

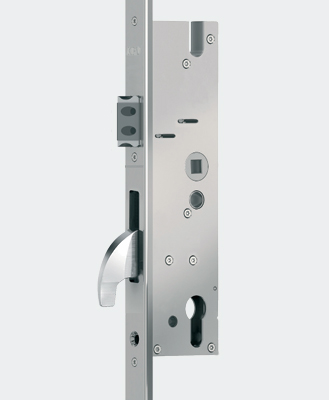

With ease of fabrication, security and ease of use in mind, we can now present a newly designed lock featuring tried-and-tested SIEGENIA comfort mushroom cam technology for use on entrance doors and French doors.
The lift-lever lock fires three high-strength hooks to ensure a high level of thermal insulation and sealing and making it suitable for PAS24 security applications. Meanwhile four comfort mushroom cams ensure smooth running into the striker plate and optimal adjustment.
Title
Title H3
Double Sprung Latch provides constant pressure and
ensures longevity of the lock. Manual closing comfort
is not only a question of ease of operation but also
of reliability. This latch allows for smoother, more
consistent locking with reduced wear and greater
durability, meaning improved reliability and a longer
lifespan.
Reversible Latch Can be used DIN right or DIN left.
Swivel Hook for maximum security and optimum
compression at the centre of the door, achieving PAS24
certification as standard. Anti-tamper plate as standard
to resist manual intervention.
Title H3
Comfort Cam the Multi-point lock with four self adjusting comfort mushroom cams with continuous height adjustment. Rolls smoothly into the striker plate every time and guarantees a locking system that is always optimally adjusted.
Swivel Hook in the top and bottom auxiliary boxes for maximum security. Contrasting Tapers with the striker plate for optimal compression.

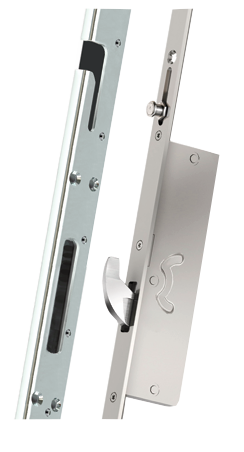

One-Piece Striker combines secure, enclosed locking with a sleek, uninterrupted frame part design and modular top plate system for maximum security, aesthetics and long-term reliability. Interchangeable profile-specific packers mean one solution can serve multiple door profiles delivering precise alignment and simplified specification.
Titan Silver Surface Provides protection against general environmental influences such as rain, wind, dust and air humidity.One of most durable standard finishes on the market which surpasses 480 hours salt spray testing according to EN1670.
Multipoint lock variants
Standard, Compact and Inactive
Suitable for a variety of single and double door applications in a wide range of sizes, these locks allow for leaner stockholding. Plus, interchangeable profile-specific packers mean one solution can serve multiple door profiles. Ease of fabrication is also ensured as uniform routing details can be used for all of the lock variants.

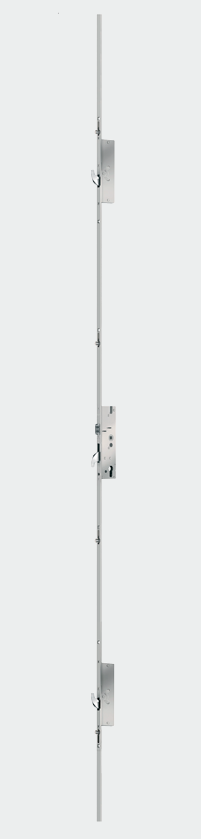

Standard

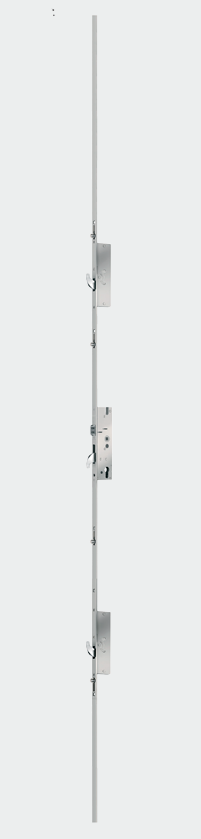

Compact

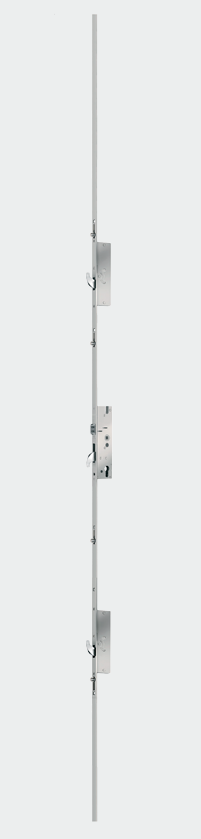

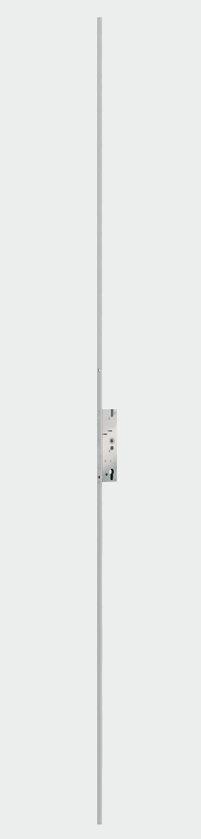

Inactive
