AEROMAT mini

Passive window rebate ventilator with optional turn lock.

Komfortsysteme Fensterluefter Aeromat Mini Head

The flexible solution against humidity and mould.

The AEROMAT mini energy-saving passive ventilator autonomously provides a continuous air exchange and effective moisture protection. The automatic flow control also contributes to a high degree of room comfort. The AEROMAT mini is easy to install and is almost invisible when used in timber, PVC and aluminium windows.

Product benefits
  • Passive ventilation: continuous, controlled fresh air supply with the window closed
  • Mould prevention and protection from humidity in accordance with DIN 1946-6
  • Self-regulating volumetric flow control stops draughts
  • Can be locked manually with the optional turn lock
  • Concealed in the window rebate and easy to retrofit - Also suitable for retrofitting

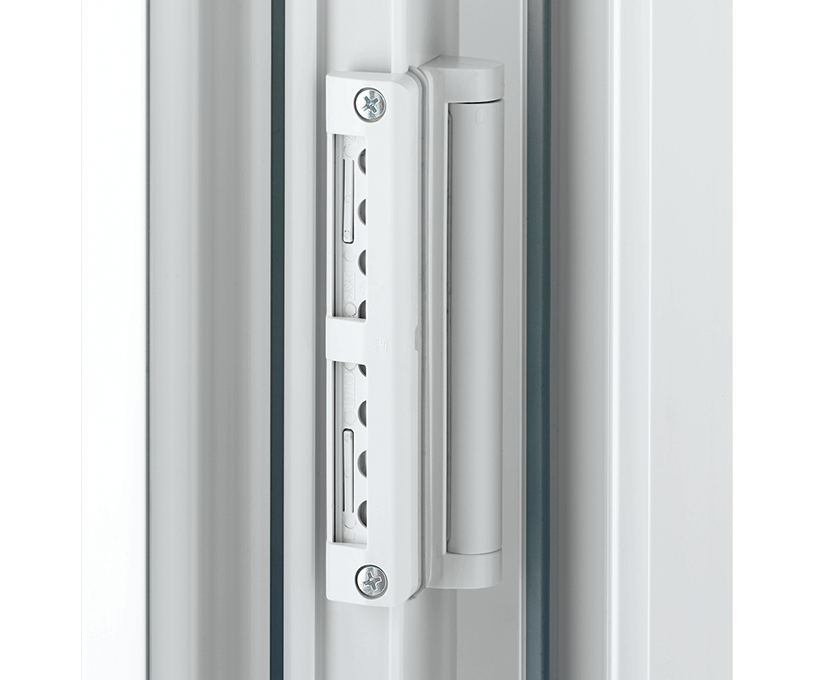

Komfortsysteme Fensterluefter Aeromat Mini Tab Produktvorteile 01

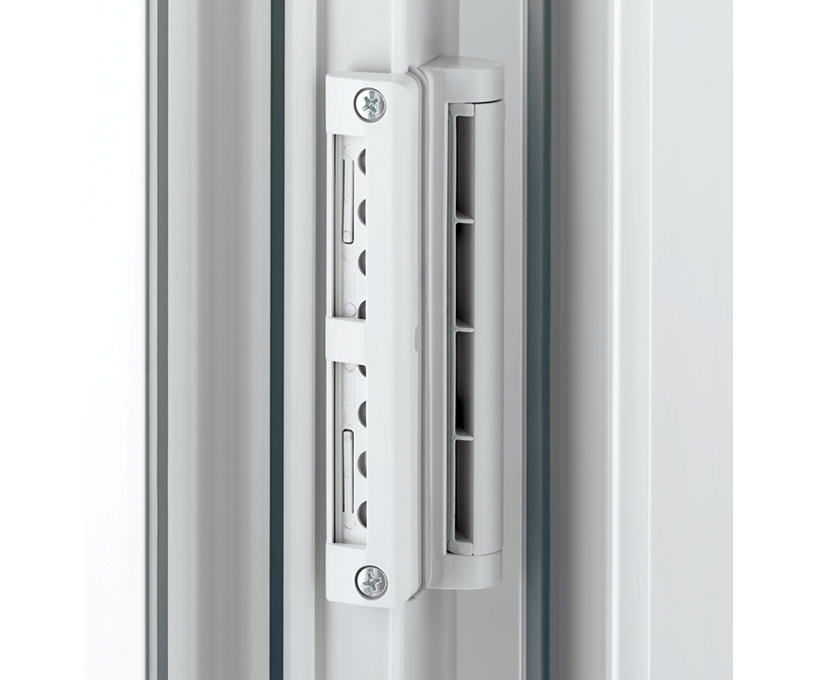

Komfortsysteme Fensterluefter Aeromat Mini Tab Produktvorteile 02
Installation features
  • Fast and easy integration in production processes
  • Concealed, simple installation in top third part of
  • timber, PVC and aluminium windows: horizontal installation at the top and on the hinge side with standard screws
  • Narrow design for flexible installation and very small sash sizes
Komfortsysteme Fensterluefter Aeromat Mini Tab Montagevorteile
Technical specifications
  • Dimensions, H x W x D: 21.3 x 125 x 16.4 mm
  • Air throughput: 6 m3/h at 10Pa - with installation in pairs (depending on the profile)
Komfortsysteme Fensterluefter Aeromat Mini Tab Montagevorteile
