PORTAL HS 200 kg

Our PORTAL lift-slide technology for timber, PVC and aluminium is so versatile and sophisticated that it pushes forward with regard to room comfort, with its wide range of innovations – of course it is also barrier-free and comes with numerous options for saving time and reducing costs throughout the entire production process.

ECO PASS threshold

Barrierefreiheit und Energieeffizienz wie aus einem Guss.

Die einzigartige ECO PASS Bodenschwelle für unsere PORTAL Hebe-Schiebe-Elemente bringt Barrierefreiheit und hohe Energieeffizienz flexibel und montagefreundlich perfekt auf einen Nenner. Dazu ist die ECO PASS Bodenschwelle in unterschiedlichen Ausführungen erhältlich: in der niveaugleichen axxent-Variante mit 0-mm-Laufschiene, mit 5-mm-Laufschiene und niveaugleicher Trittschwelle, mit 5-mm-Laufschiene und schrägem Trittblech. Die erstklassige Wärmedämmung und besondere Stabilität der einteiligen Lösung wird jeweils durch das innovative 10-Kammer-Profil erreicht. Alle ECO PASS Bodenschwellen zeichnen sich zudem durch hohe Dichtheit aus. Hochwertige Anschlusslösungen garantieren einen normgerechten Bauanschluss.

Komfortsysteme Schiebetueren Hebe-schiebe Bodenschwellen

ECO PASS axxent: die niveaugleiche 0-mm-Bodenschwelle.

Schiebetueren Design Ecopass-sky-axxent-interieur
Schiebetueren Barrierefreiheit Null-barriere-schwelle
  • Für Hebe-Schiebe-Systeme aus Holz-Alu
  • 0-mm-Barrierefreiheit ohne Schrägen nach DIN 18040-2
  • Optimale Wärmedämmung durch 10-Kammer-Konstruktion
  • Perfekter Bauanschluss und optimales Entwässerungssystem
Threshold ECO PASS SKY axxent
Product film



ECO PASS niveaugleiche 5-mm-Bodenschwelle.

Komfortsysteme Schiebetueren Hebe-schiebe Eco-pass-niveaugleich
  • Für Hebe-Schiebe-Systeme aus Holz-Alu, Holz und Kunststoff
  • 5-mm-Laufschiene und niveaugleiche Trittschwelle ohne Schräge für Barrierefreiheit nach DIN 18040-2
  • Optimale Wärmedämmung durch 10-Kammer-Profil
  • Sehr gute Schlagregendichte dank Entwässerung über zwei Ebenen
  • Einteilige Bauweise
ECO PASS niveaugleiche 5-mm-Bodenschwelle
Produktfilm



ECO PASS 5-mm-Laufschiene.

Komfort Barrierefreie-schiebetueren Bodenschwelle
  • For lift-slide systems made of timber-aluminium, timber and PVC
  • Practically barrier-free passage thanks to step plates and a 5-mm running rail for a barrier-free system in accordance with DIN 18040-2
  • 10-chamber design allows optimum thermal insulation

ECO PASS SKY threshold

Seamless transition of the fixed glazing in the floor: the SKY effect.

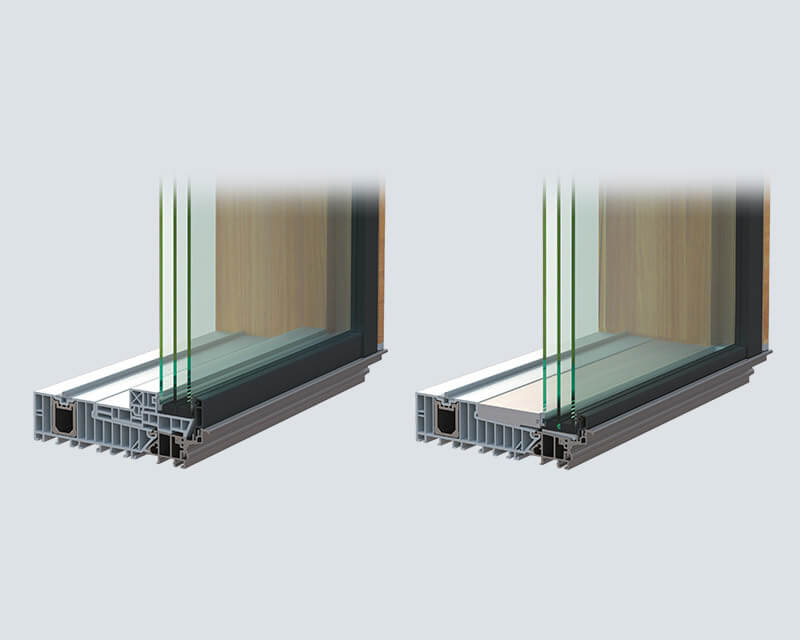

In order that you can live in a light and boundless environment, the ECO PASS SKY threshold for timber-aluminium lift-slide systems allows a seamless transition of the fixed glazing elements into the floor. In conjunction with lean sash profiles, you will achieve a sliding door design that eliminates the boundary between inside and outside and will optically enlarge your living space.

Schiebetueren Design Ecopass-sky-axxent-festverglasung

In the ECO PASS SKY axxent variant, the design of the threshold can be flexibly adapted to the floor or frame material. For a drainage gutter in front of the fixed glazing, a grille design that is identical to that in the threshold area is possible.

ECO PASS Bauanschluss

Geprüfte Komplettlösungen für ECO PASS Bodenschwellen.

Hochwertige Anschlusslösungen für unser gesamtes ECO PASS Bodenschwellenprogramm. Die sorgfältig aufeinander abgestimmt sind, sich flexibel und zeitsparend verarbeiten lassen und darüber hinaus sicher und normgerecht sind.

Mehr erfahren

Komfortsysteme Schiebetueren Hebe-schiebe Bauanschluss

COMFORT UNIT

Order your lift-slide system as a zero-hassle package.

For customised fabrication processes, we will deliver your lift & slide complete package based on the ECO PASS threshold as a ready-to-assemble, hassle-free package with our COMFORT UNIT. That way all hardware components are already cut to the nearest millimetre and individually pre-drilled.

Learn more

Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Comfort Unit

Gear

PORTAL can do it: Discover the possibilities.

With PORTAL HS, you have a choice of gear, thus presenting your customers with more possibilities. In this way, manual ease of use can be flexibly adapted to individual requirements and the highest standards can be met. The selection begins with the type of lock: Either classical with two or more sturdy locking bolts, or innovative and flush with up to three hook bolts.

Gear with locking bolts: burglar resistance up to RC3 is possible.

Depending on the element, you can easily achieve burglar resistance up to RC2 with two or four sturdy locking bolts. Moreover, RC3-certified burglar resistance can be achieved with the provision of four locking bolts and three pairs of security interlocks on the DS28/48/28 sealing rail. Only PORTAL HS can offer you this.

Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Getriebe Riegelbolzen

Hook bolt gear: Tight and secure without compromising.

Up to three hook bolts, with integrated blocking function, ensure effective, first-class sealing and high burglar resistance up to RC2. Absolutely flush when open, they slide over closing rollers into the frame part gently and without wear and reduce the gear load. The night vent is standard and the concealed pressure adjustment is +/- 2 mm.

Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Getriebe

The most sophisticated options for comfort and security.

Even less operating force.

A preassembled, ready-to-install damper unit is available as a comfort gear for these two locking types. A special spring hidden in the comfort gear uses the weight of the sash to reduce the torque and lift the sash even more easily. The handle is prevented from snapping back in an uncontrolled manner when the sash is lowered into the locking position.

Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Tab Komfort Getriebe

The option for even more security.

Whether you choose the standard or comfort gear, with hook bolt or locking bolt: You can of course also obtain PORTAL HS gears from 200 kg with cylinder locks that meet the highest security requirements.

Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Tab Schliesszylinder

Handle

Quality that you grasp immediately.

  • Noiseless locking and unlocking free of play with lasting high functional security
  • Ergonomic and contemporary design
  • Free colour selection: white, cream, brown, medium bronze, silver, titan matt light, F9 or black, can also be painted
  • Large choice of versions ranging to the design with cylinder
  • Perfectly coordinated with the hardware and the sash weight
  • Matching the handles from the turn and tilt range in terms of colour and design
Tuersysteme Schiebetueren Hebe Schiebe Hebel

Bogie wheels

Ease and efficiency are a question of adjustment.

  • Integrated precision adjustment with readjustment reserves of 3 mm: Quick and easy lifting of the sash at the back
  • Saving time and costs for you: Flexible and secure adjustment of the sash during assembly and perfect tolerance equalisation
  • Greater ease of use for your customers: Smooth sliding motion with high compression thanks to optimum adjustment opportunities on site
  • Suitable for sash weights of up to 300 kg
Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Laufwagen

Sealing rails

Let neither heat nor burglars through.

With our PORTAL sealing rails for lift-slide systems you can increase the intruder resistance together with the compression and also provide effective protection against condensation, wind and driving rain.

Sealing rail DS28/48/28: more insulation and security with less expenditure

  • Optimised thermal separation through a multi-chamber sealing rail made of PVC
  • The best compression in combination with the HS 4.0 sealing system
  • With additional parts, suitable for burglar resistance RC2 or RC3
  • Invisible screwing and minimum width for leaner profiles: only 28 mm wide at the top
  • Fastest fabrication due to pre-drilled screw holes and a corner part between the horizontal and vertical sealing rail
  • Increased sash tolerance range
Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Dichtschiene D 28-48-28

Sealing rail C28/48:
optimal horizontal insulation.

  • Optimised thermal separation through a multi-chamber sealing rail made of PVC
  • Can also be mounted horizontally to seal the top sash area
  • With additional parts suitable for burglar resistance RC2
  • Easy, invisible fixing due to existing screw holes
  • Sash tolerance range +-/- 3mm in both directions
  • Optionally available with additional sealing brush
Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Dichtschiene C28 48

Sealing rail C:
Easily mounted, hard to crack.

  • Good compression and thermal separation thanks to a PVC profile with three chambers
  • Easy adjustment due to centre lock with compression adjustment
  • Large-scale seal compensates for manufacturing tolerances
  • For burglar resistance RC2 it can be combined with three security interlocks made of aluminium: Effective protection against prying your windows open
Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Dichtschiene C

SOFT CLOSE

As safe and gentle as a modern kitchen drawer.

There is a safe solution for the simple operation of lift-slide systems: The innovative SOFT CLOSE function which can be invisibly integrated into the sash. The solution consisting of a guiding rail and a damper brakes the sash gently just before the end position and then pulls it shut automatically. This minimises any risk of injury in the case of improper operation and precludes any material damage.

Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Softclose 01
Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Softclose 02


SOFT CLOSE guiding rail

  • Particularly smooth and gentle ease of use for a completely new sliding feeling thanks to the unique, integrated roller guide
  • Milled in flush for a perfect look
  • Also available in black for dark profiles
Tuersysteme Schiebetueren Hebe Schiebe Portal Hs Softclose 03


SOFT CLOSE damper

  • Prevents damage and injury caused by improper operation
  • Simple and intuitive operation: Faulty switching is excluded
  • No annoying adjustment or readjustment: spring mounted, it automatically adapts to every sash position and compensates for tolerances
  • Maintenance-free thanks to oil-lubricated gas pressure spring
  • Perfect design: Fully concealed solution
  • Also available in black for dark profiles

Stop buffer

New stop buffer: elegant, discreet, easy to clean.

  • Virtually invisible because it is directly integrated in the guiding rail
  • Elegant, discreet appearance
  • Easy cleaning of the elements in the bottom profile area
  • Suitable for all SC guiding rails of the PORTAL HS
